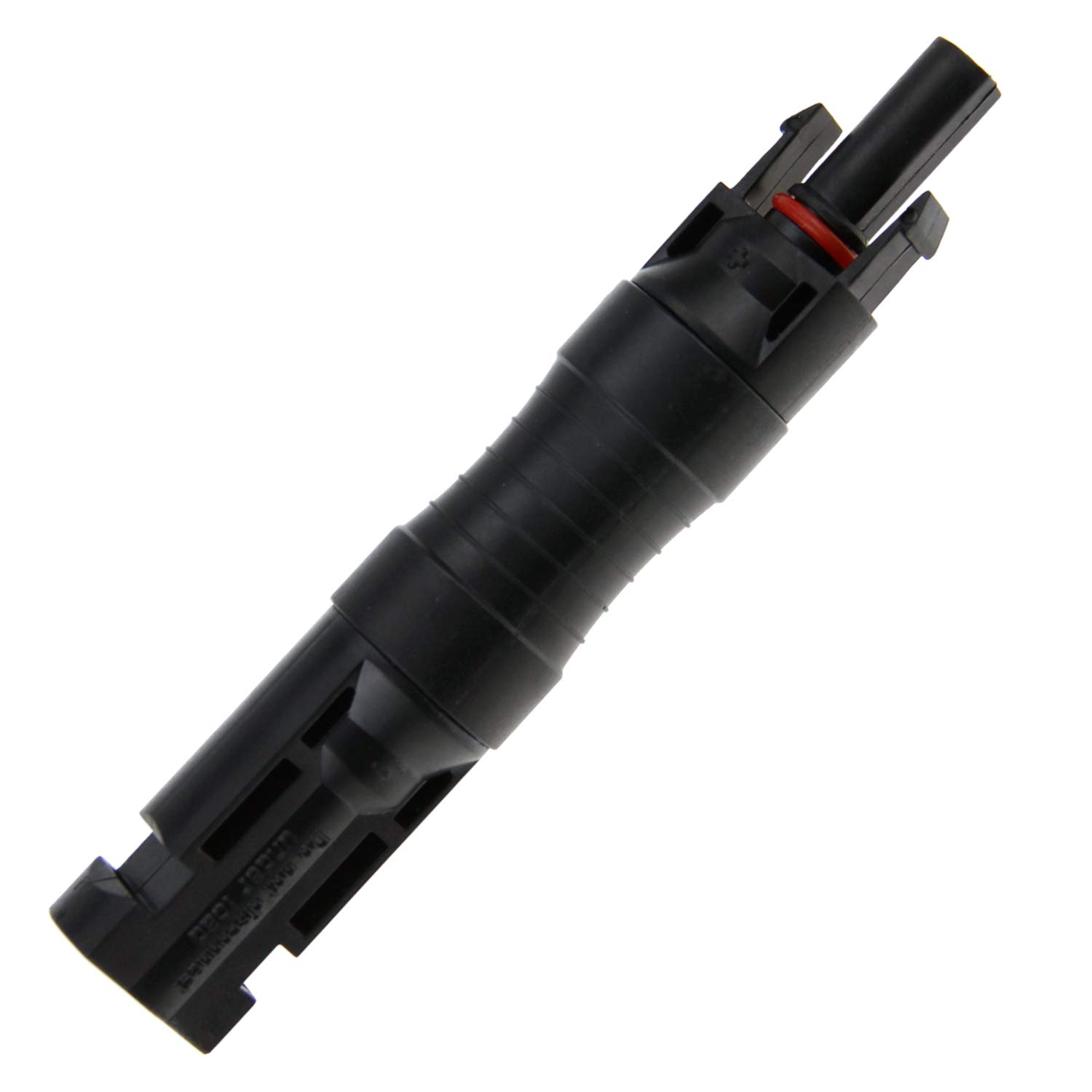

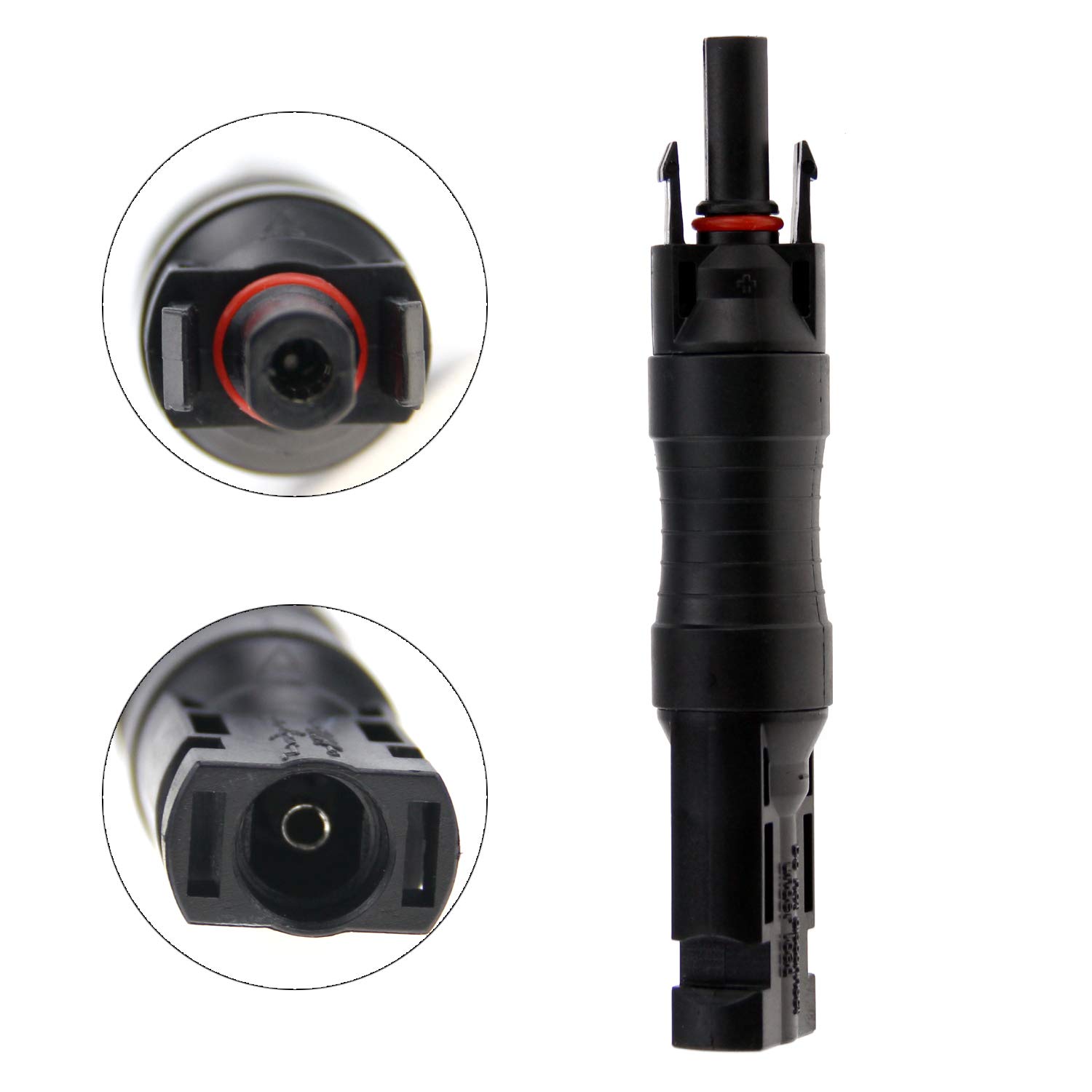

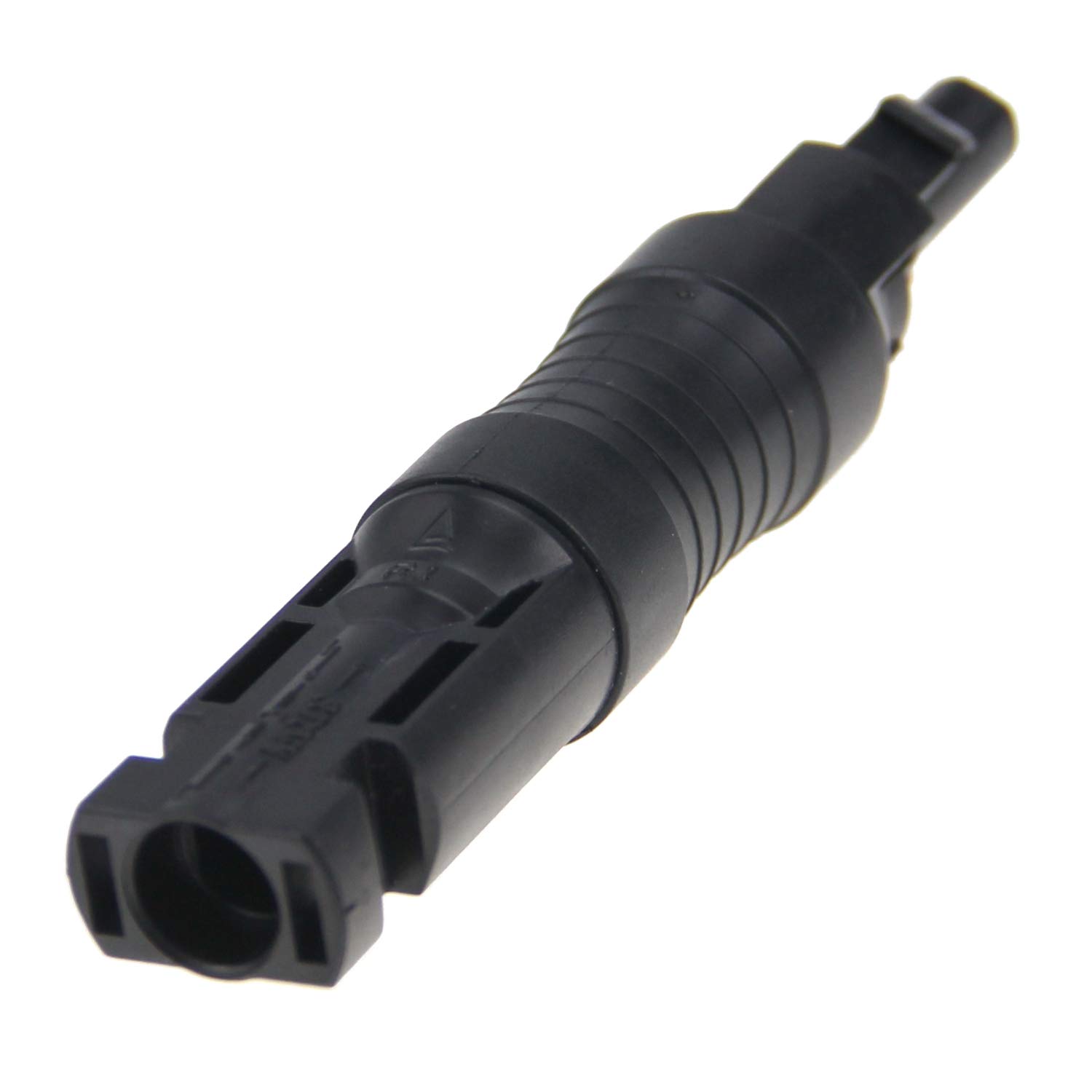

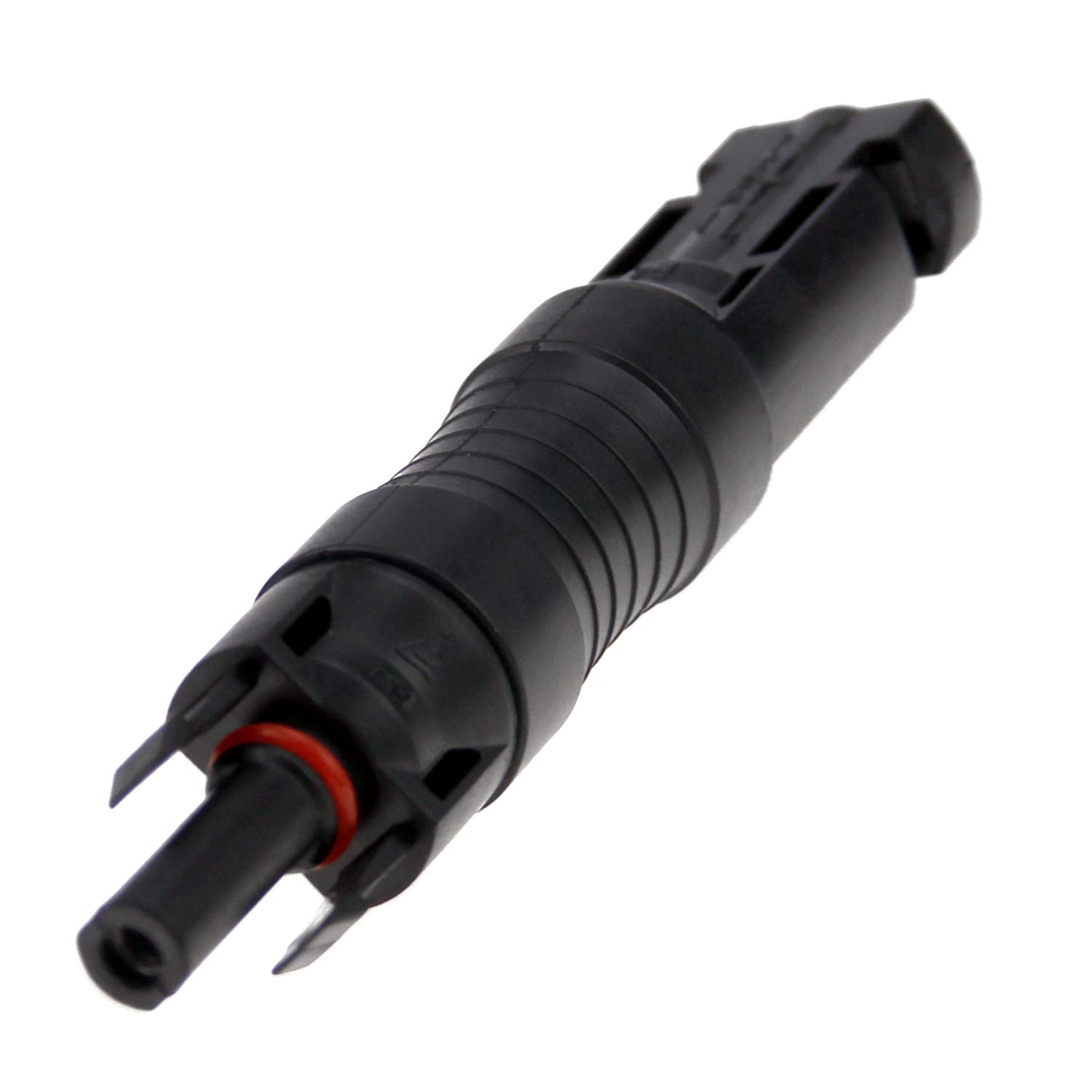

ZOOKOTO 20A Waterproof Solar Panel PV Connector with Built-in Diode - 20SQ045 Solar Cable Connector for RV, Boat, Off-Grid Power Systems

$3.51

$6.39

Safe 45%

ZOOKOTO 20A Waterproof Solar Panel PV Connector with Built-in Diode - 20SQ045 Solar Cable Connector for RV, Boat, Off-Grid Power Systems

ZOOKOTO 20A Waterproof Solar Panel PV Connector with Built-in Diode - 20SQ045 Solar Cable Connector for RV, Boat, Off-Grid Power Systems

$3.51

$6.39

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

13 people viewing this product right now!

SKU: 10600199

Guranteed safe checkout

Description

Specifications: Rated Current: 20A Test Voltage:6000(50Hz,1min) Overvoltage Category/Polution degree:CATIII/2 Contact resistance of plug connectors:0.5mΩ Contact meterial :Coppper,Ag plated Insuation material:PPO Flame class:UL94-VO Type: Male to Female Material: PA/PC Certifications: TUV Size: 13.5 x 2 Cm(L*D) Color: Black Net Weight: 35g Package Content: 1 x 20A Diode Connector For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled. The end product must provide protection from electric shock. Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted. Disconnected connectors should be protected from dirt and water with sealing caps.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Each unit includes 1pc Diode Holder + 1pc 20Amp Diode 20SQ045

Compatible with PV cables with different insulation diameters，Material PA/PC; Certifications TUV

With IP67 Waterproof, excellent aging resistance and UV endurance, it can be used in harsh environment

Changing Diode is fast and easy. Simply unscrew the Diode Holder, remove the old Diode, insert the new Diode, and screw the Diode Holder shut

10amp, 15amp, and 20amp Diode options available, if there is any question, just contact us

Reviews

*****

Verified Buyer

One piece, weatherproof design. Very easy to slip into existing panel installations. Pay close attention to the polarity so you don't install the blocking diodes backwards. Other than that, it's simple snap-and-go installation.
