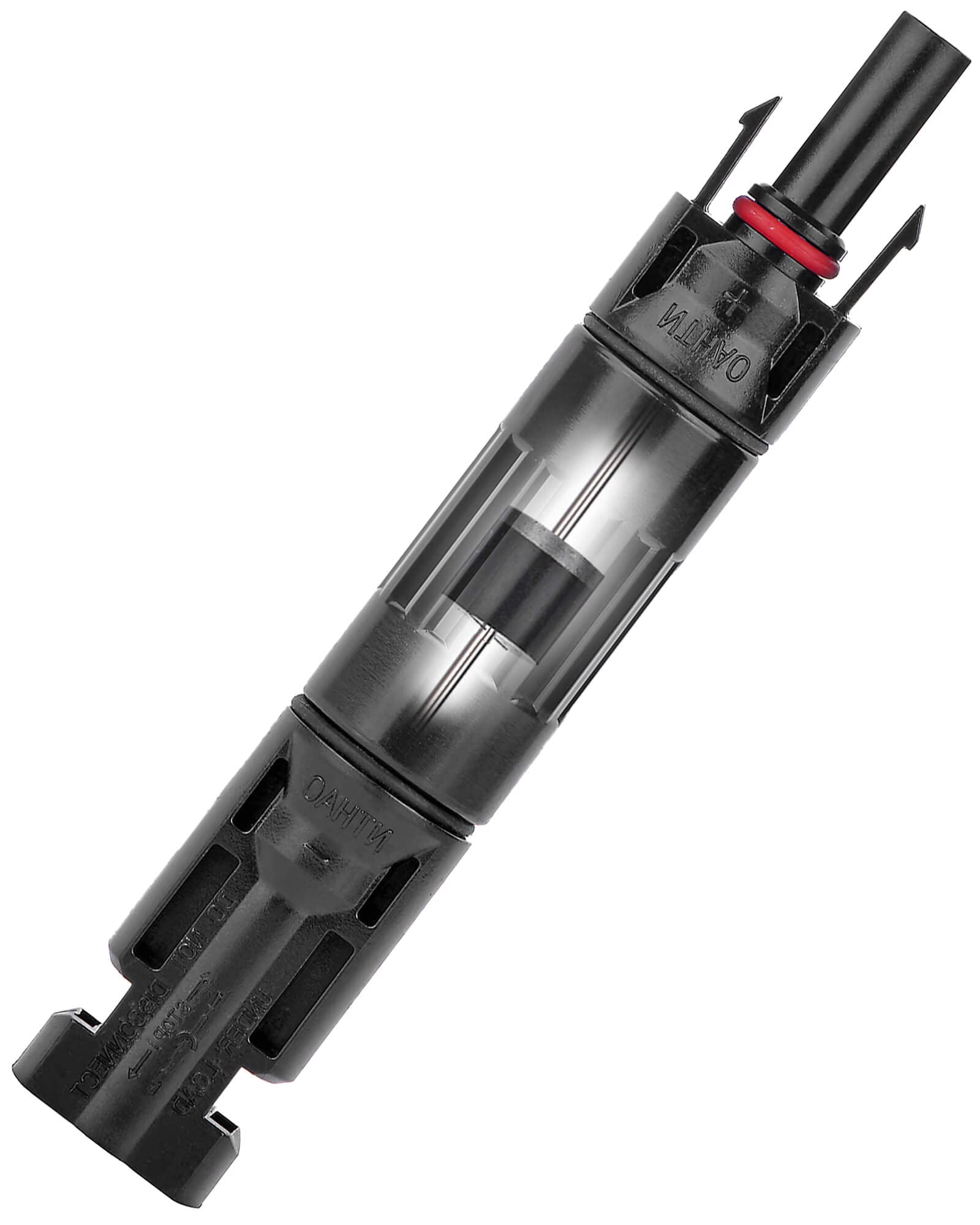

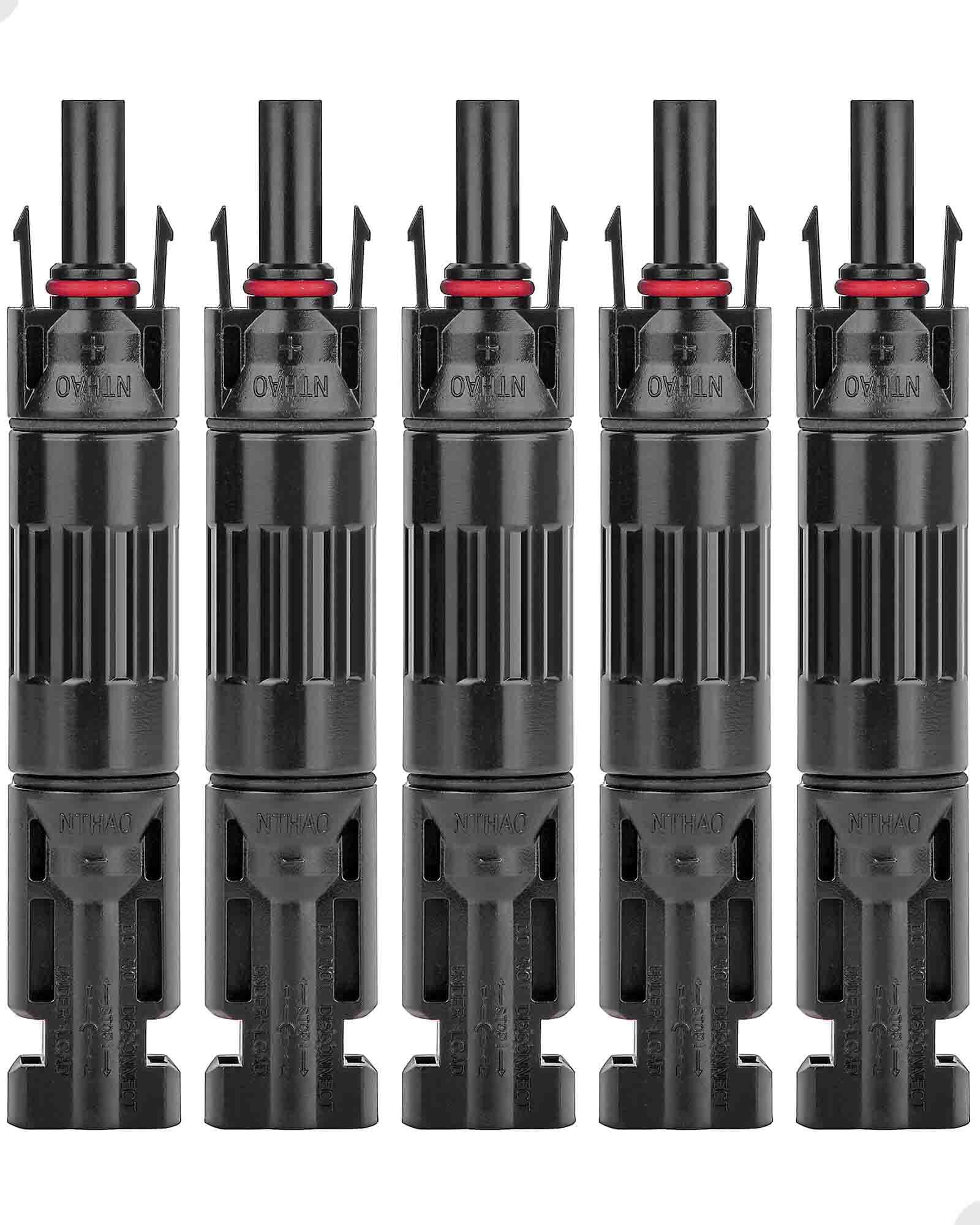

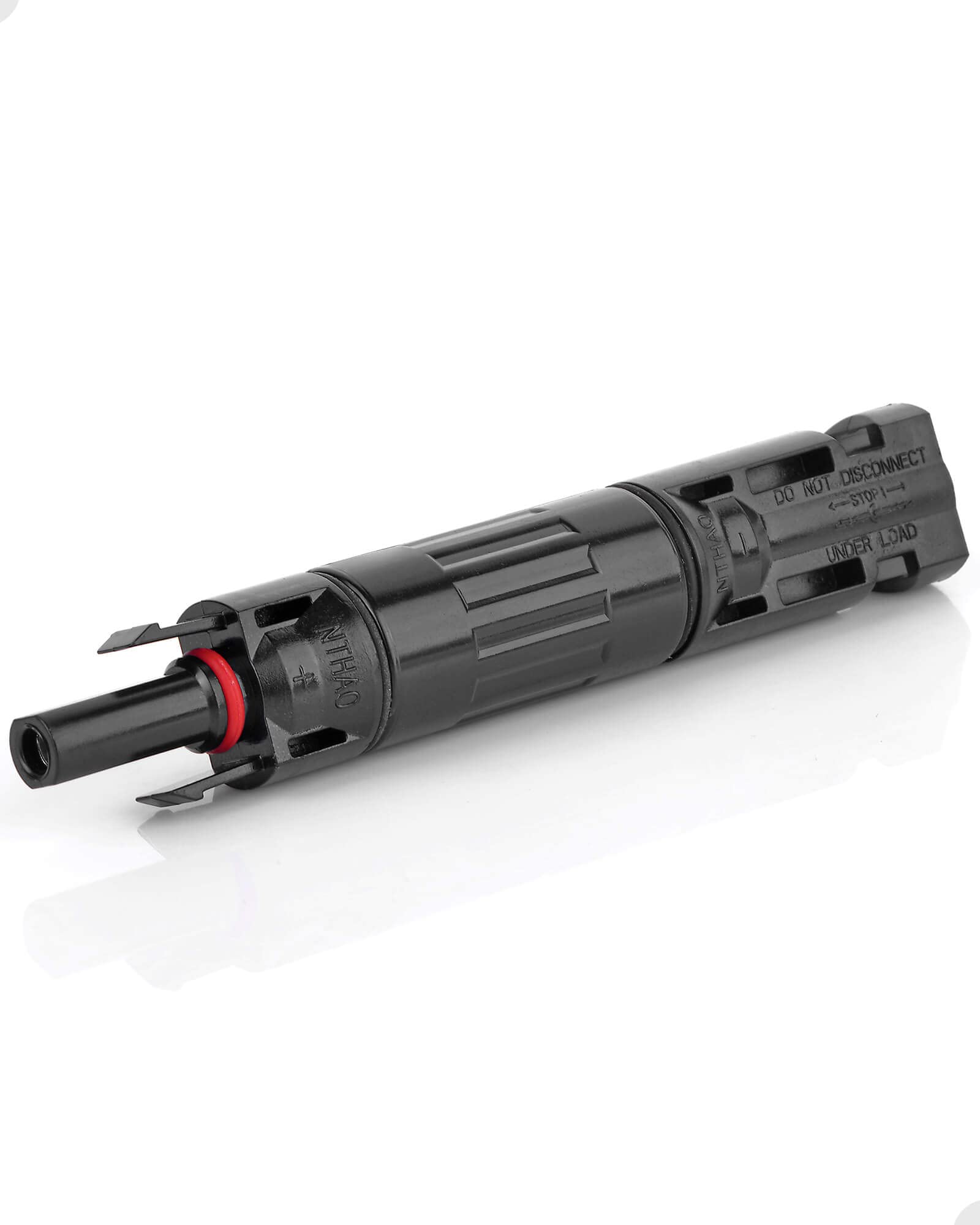

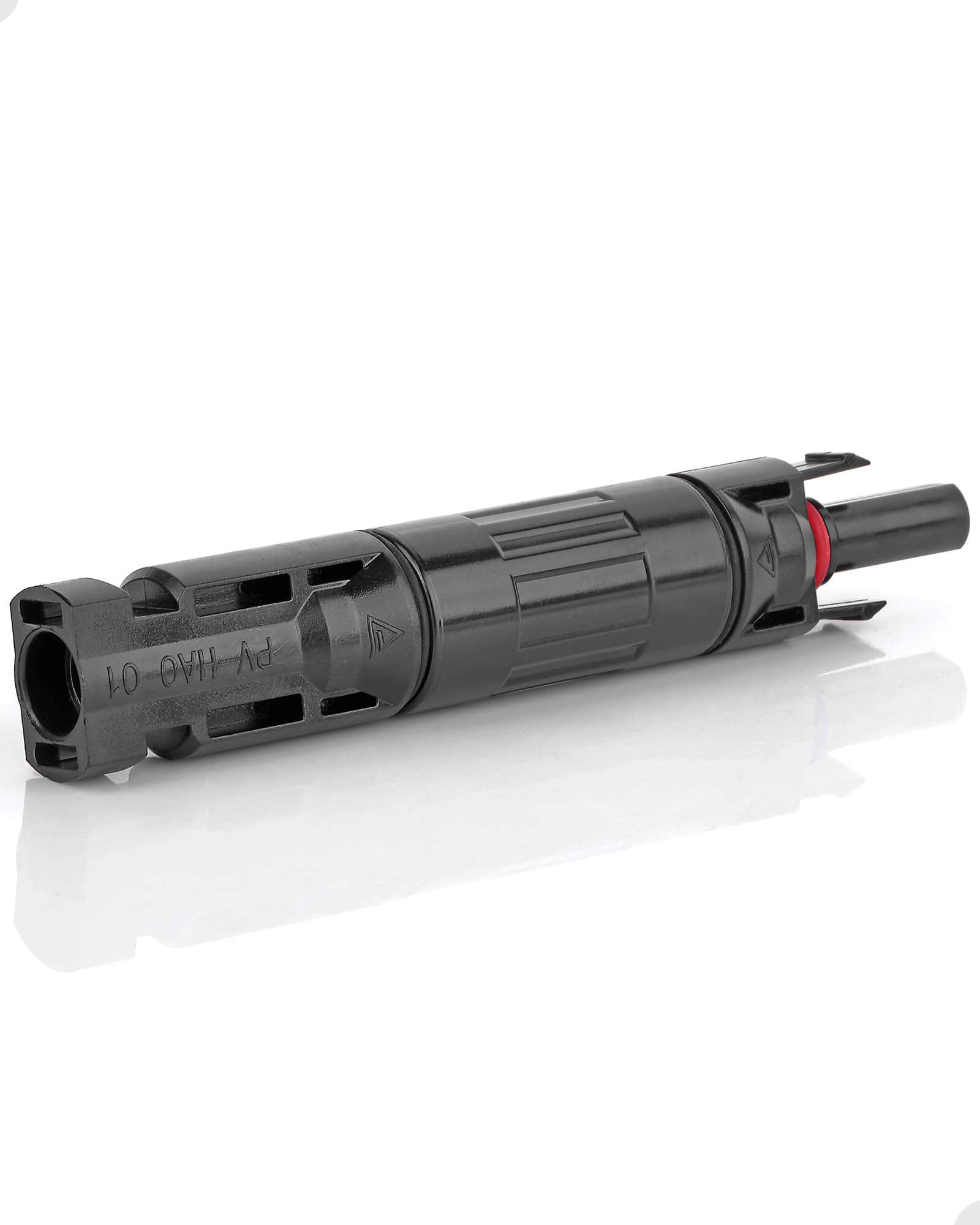

5 PCS 30A PV Solar Panel Connectors - Male & Female with Built-in Diode, Waterproof & Anti-Backflow for Solar Power Systems - Perfect for RV, Off-Grid & Home Solar Installations

$14.29

$25.99

Safe 45%

5 PCS 30A PV Solar Panel Connectors - Male & Female with Built-in Diode, Waterproof & Anti-Backflow for Solar Power Systems - Perfect for RV, Off-Grid & Home Solar Installations

5 PCS 30A PV Solar Panel Connectors - Male & Female with Built-in Diode, Waterproof & Anti-Backflow for Solar Power Systems - Perfect for RV, Off-Grid & Home Solar Installations

$14.29

$25.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

23 people viewing this product right now!

SKU: 35689369

Guranteed safe checkout

Description

About Us BAITHNA is a famous brand that dedicated to providing innovative, cost-effective and quality products. We have been specialized in automotive products and parts for many years. Constant improvement and innovation is our eternal aim. Flame Class:UL94-V0 Locking System: Snap-in Insertion / Withdrawal Force: ≤50N / ≥50N Waterproof Class:IP68 suitable for outdoor harsh environments Suitable for cables: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 ) Package Includes: 5 x 30A Built-in diode Connectors BAITHNA 5 PCS 30A Built-in diode Solar PV Connector IP68 Waterproof 1000V 30A Male to Female Anti-Reverse Diode Photovoltaic Connector for Solar Panel Connectors are used for parallel connection between solar panels,so will maintain the voltage of your panel configuration to match your Solar On/Off -Grid System. Function: The rectifier circuit only allows the current to pass in a single direction,and blocks it in the reverse direction to prevent the backflow from burning the photovoltaic panel. Diode Current: 30A Insulation Material:PPO/PC/ABS; Contact Material: Copper Tin Plated Rated Voltage:TUV 1000V DC /UL 600V DC Test Voltage:6KV(50Hz,1Min) Contact Resistance:≤1mΩ Pollution Degree:2；Safety Class: II Ambient Temperature:-40℃~+85℃ Highest Temperature:+125℃ FOR YOUR SOLAR PANEL ON ROOF FOR YOUR SOLAR PANEL ON RV FOR YOUR SOLAR PANEL ON BOAT

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

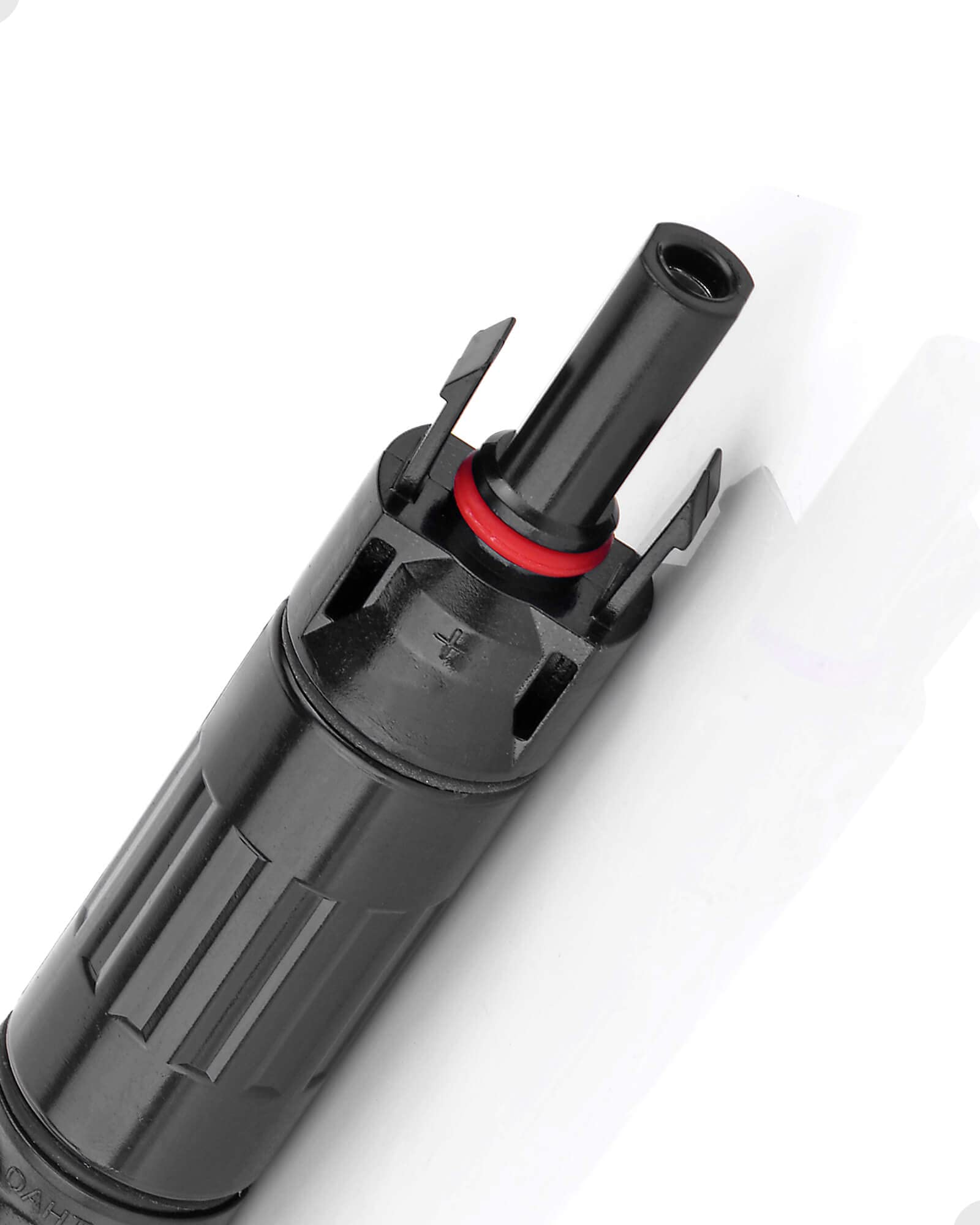

PPO INSULATION FLAME RETARDANT MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat 1.for a long time; WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion.

IP67 rated. Double seal rings for better waterproof effect, Low transition resistance.

Contacts for the connector are copper coated with tin for easy solder adhesion.

Each end nuts comes with rubber bushings for air tightening.

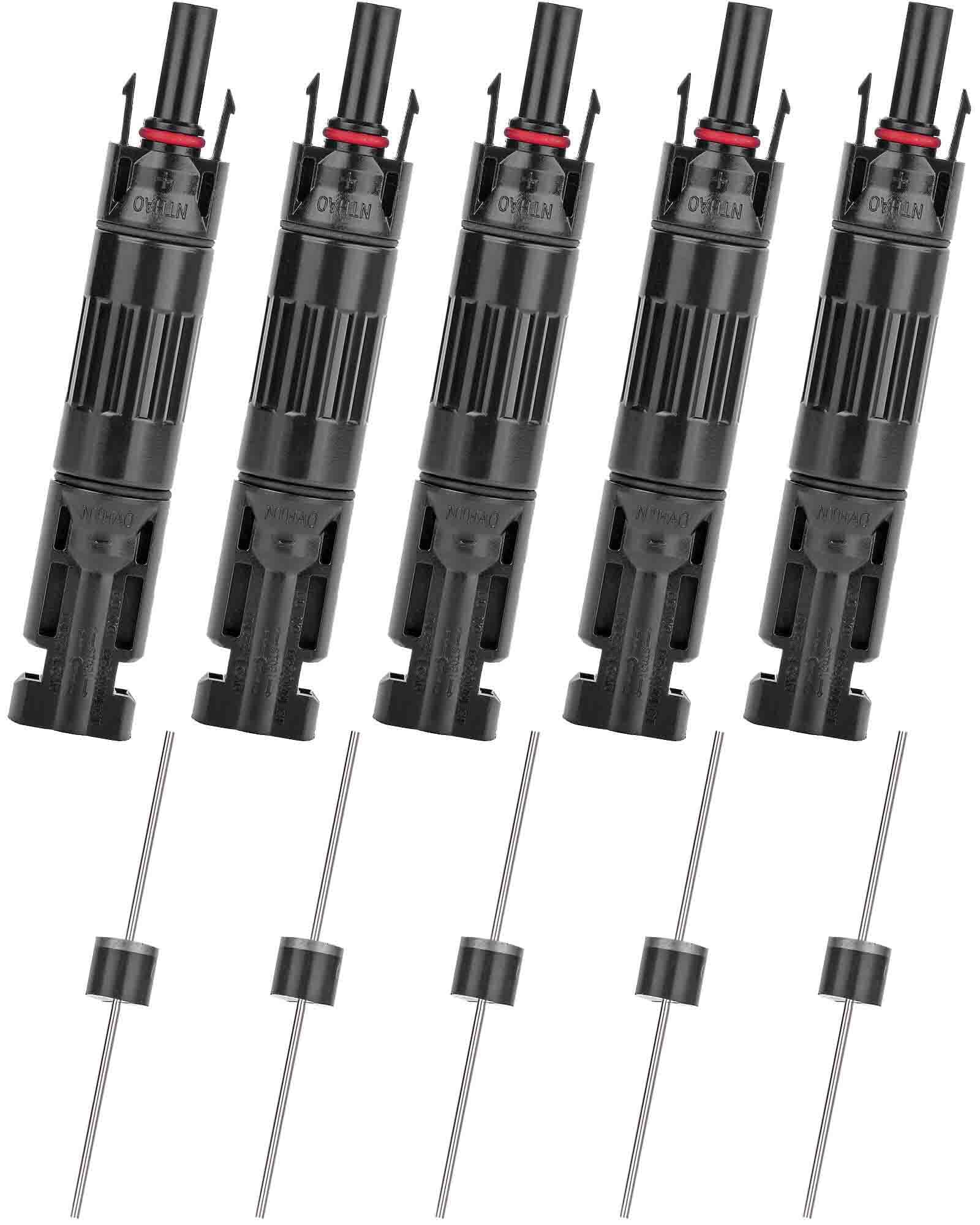

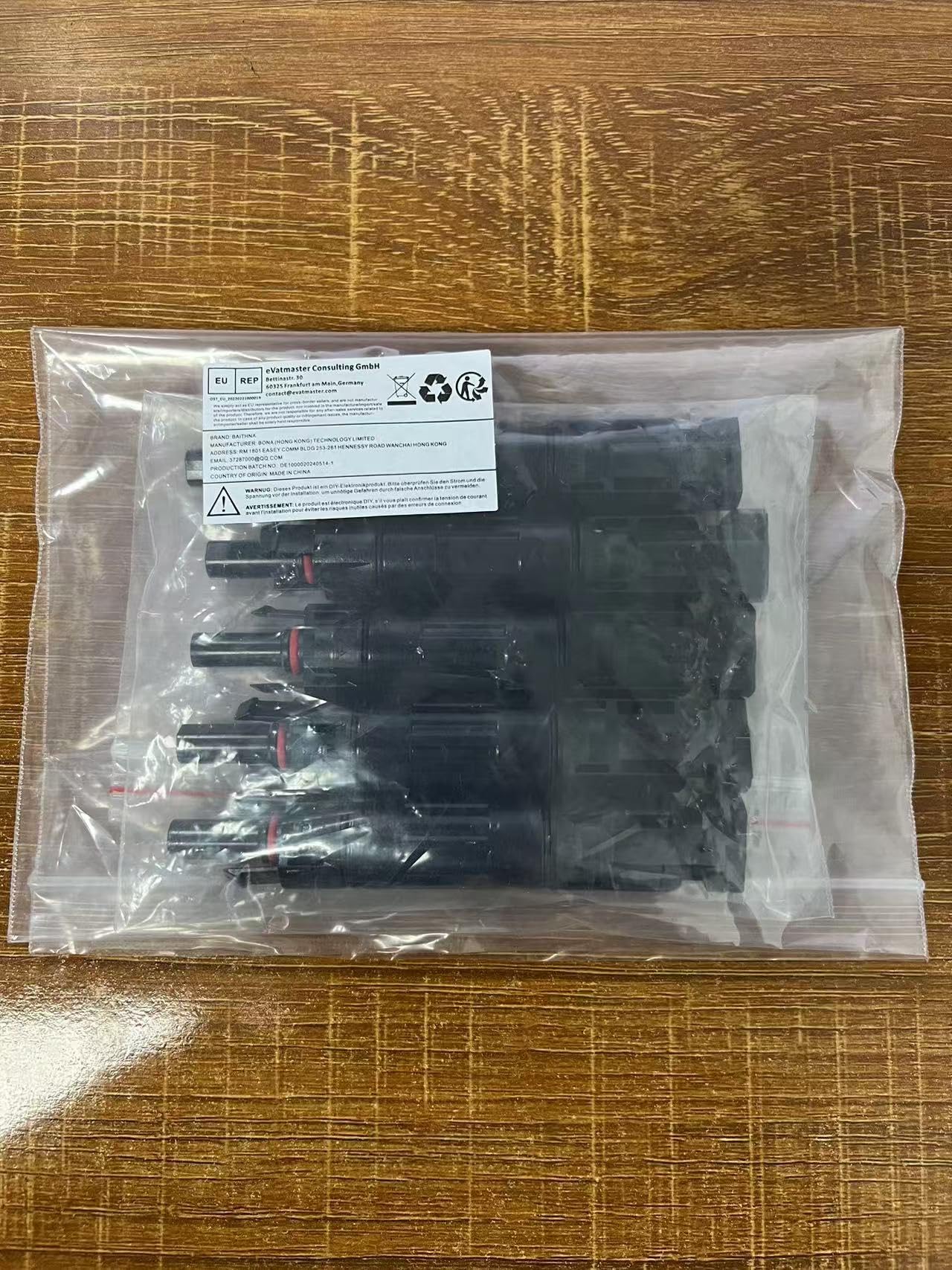

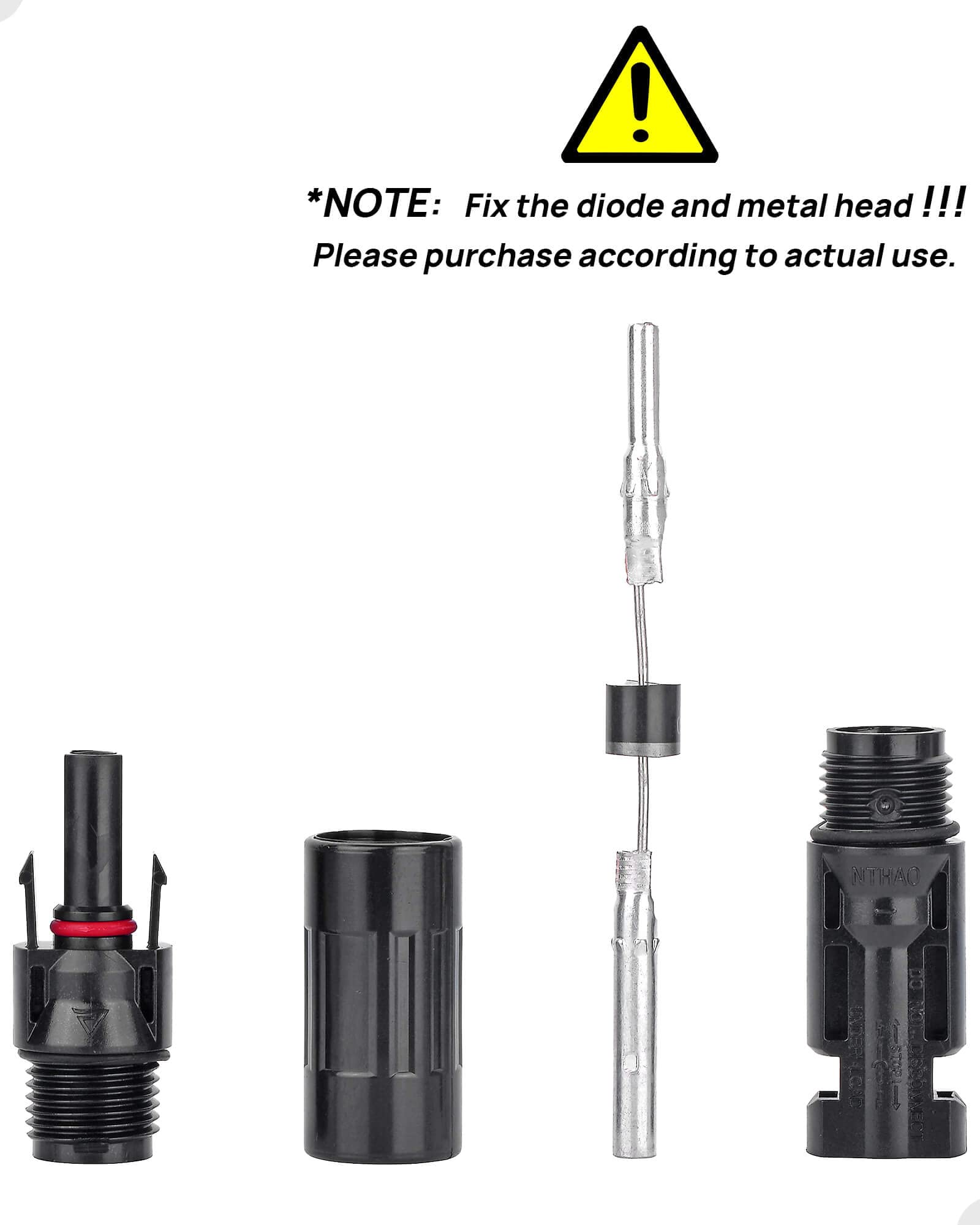

Practical and easy connector used between Solar panel and switch box to prevent the reversal of current. Package Includes5x 30A Built-in diode Connectors

Reviews

*****

Verified Buyer

I have been using these diodes for a couple of years with Ecoflow Delta Pros without any issue. The max input the Delta Pros can take is 20 amps from solar input.These diodes have a listed limit of 30 amps,I bought two Zendure SuperBase V6400 generators and have been using these diodes with them for 3 months. These Zendure units can bring in up to 25 amps, well under the 30 amp limit of the diodes.But today as everything was working fine, I started smelling a burning smell. It turned out to be a diode melting. The Zendure was bringing in 2500 watts which means it was bringing in around 23 amps ( at 110 volts), well under the 30 amps these diodes say they are rated for.23 amps is too much for these diodes - they melt!!I am taking these diodes out of all of my strings. I don't trust them anymore.
