100A MPPT Solar Charge Controller 12V/24V/36V/48V Auto, 150V Max PV Input, 5000W Power - Compatible with AGM/Gel/Flooded/Lithium Batteries - Perfect for Off-Grid Solar Systems, RV, Marine, and Home Energy Storage

$109.99

$199.99

Safe 45%

100A MPPT Solar Charge Controller 12V/24V/36V/48V Auto, 150V Max PV Input, 5000W Power - Compatible with AGM/Gel/Flooded/Lithium Batteries - Perfect for Off-Grid Solar Systems, RV, Marine, and Home Energy Storage

$109.99

$199.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

16 people viewing this product right now!

SKU: 49755669

Guranteed safe checkout

Description

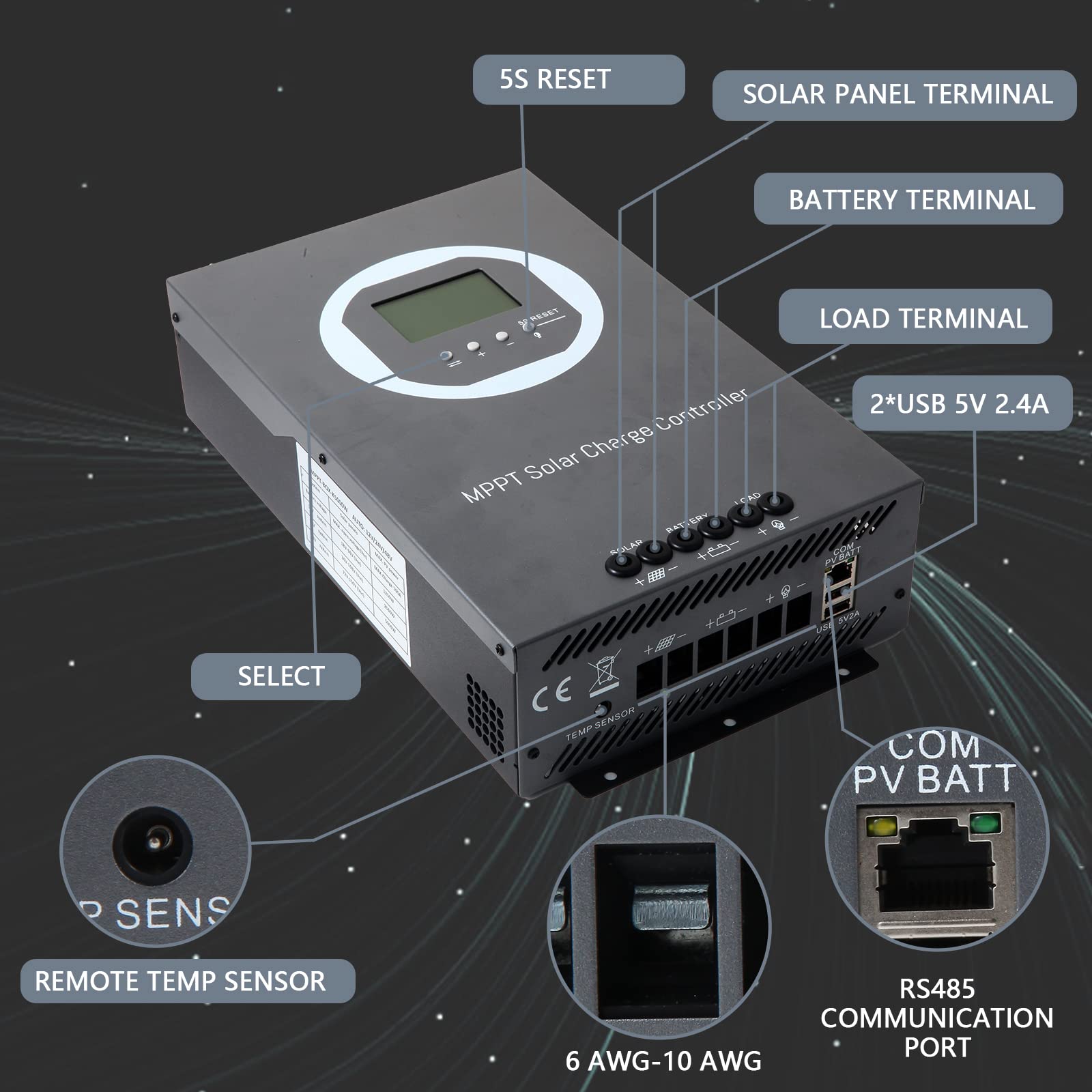

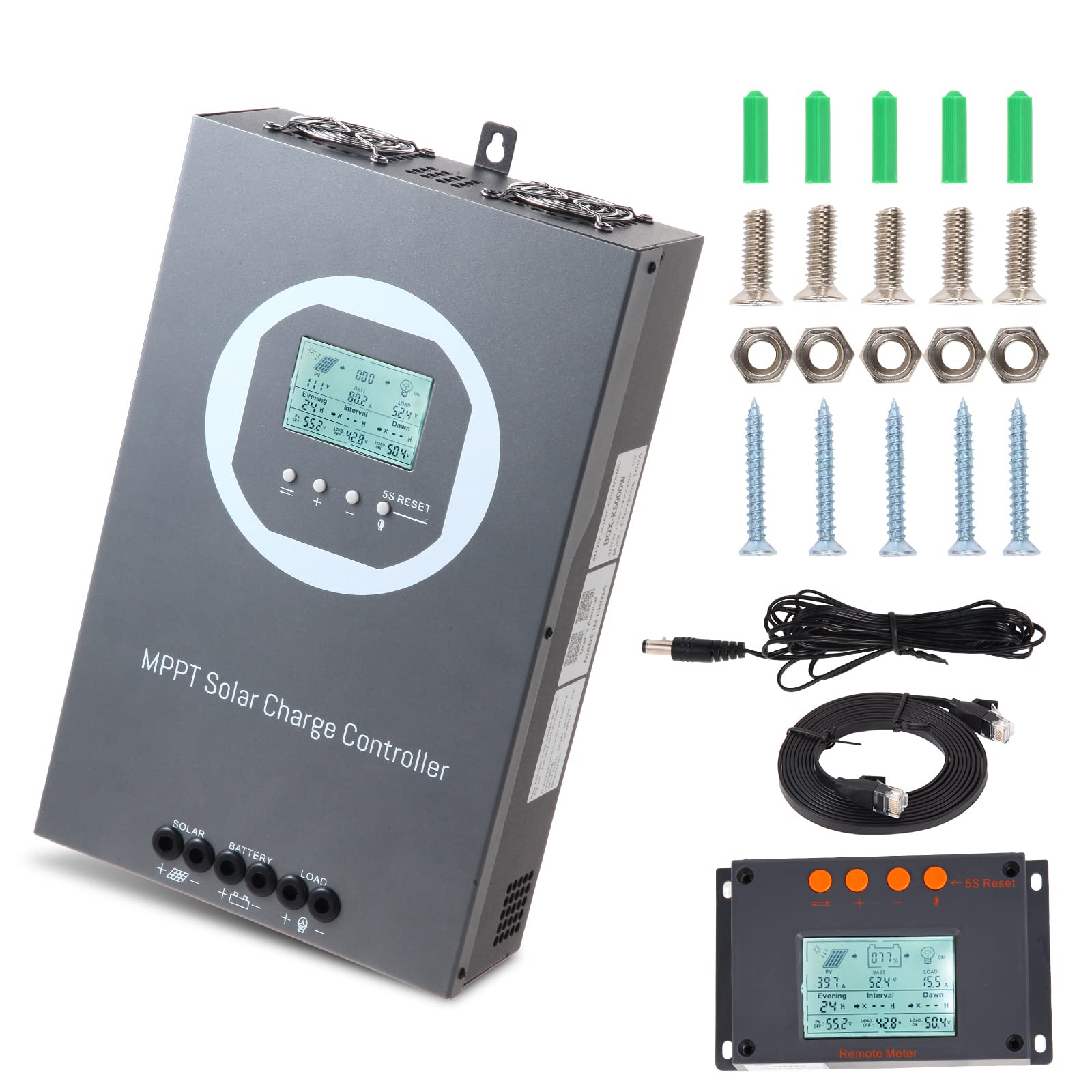

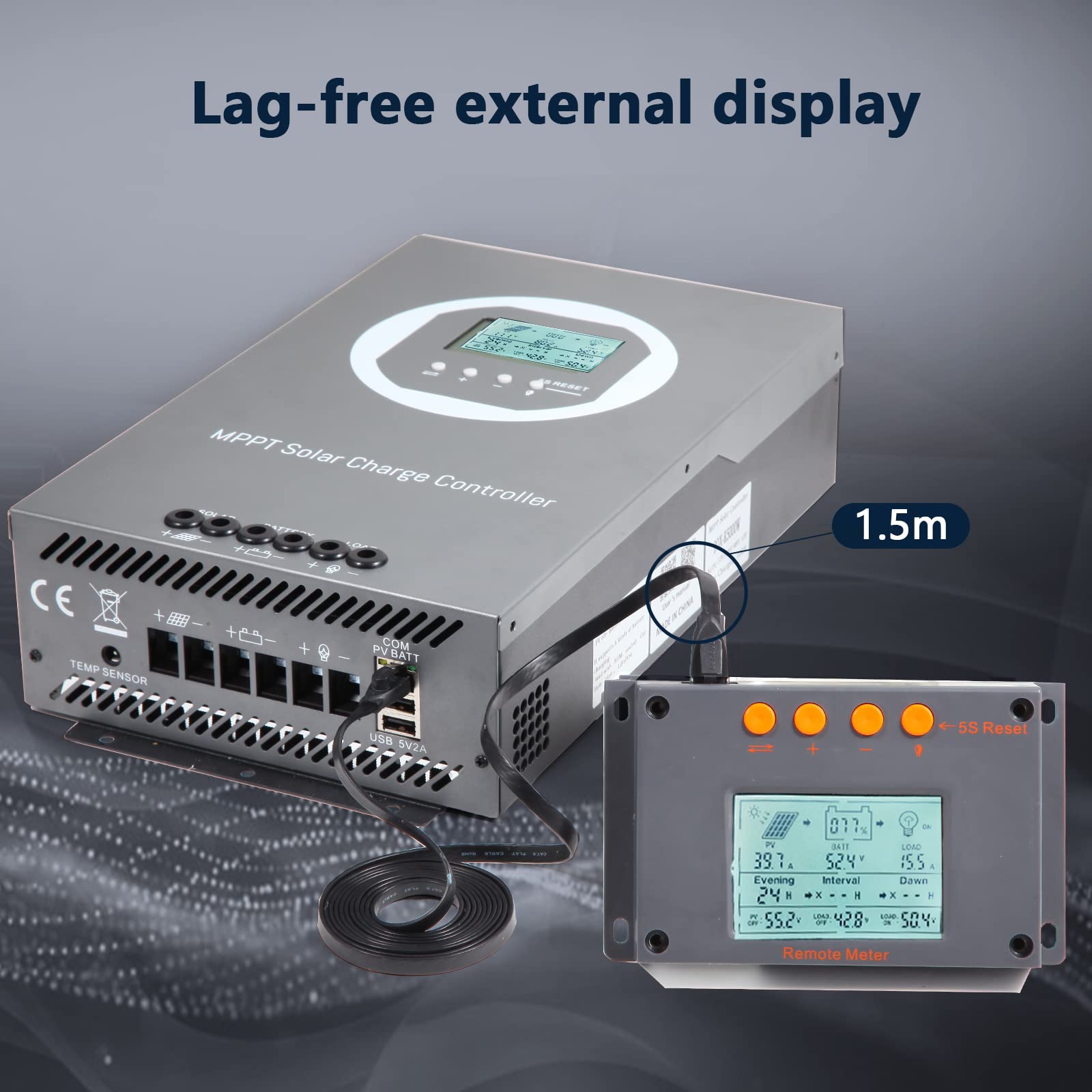

100A MPPT Solar Charge Controller , 12V/24V/36V/48V Auto Work100A mppt solar charge controller is new upgrade version，Better funcations and advanced technology .Added Features: ★Blacklight LCD Display ★The display directly shows the amount of charge: KWH, without the need for other measuring instruments★Two new vents are added for scientifically designed convection cooling.★More Safety Protection★Maximum DC/DC transfer efficiency is as high as 98.7%100A MPPT Technical datas :Rated charge current:100A12V system:open circuit voltage ≤96V(Voc) maximum. PV input power:1300W24V battery system:Open circuit voltage ≤112V(Voc) maximum.PV input power:2600W48V battery system:Open circuit voltage ≤150V(Voc) maximum.PV input power:5000WSystem nominal voltage :12V/24V/36V/48V DC Auto identifyingMax.PV open circuit voltage:150VDCPower terminal:10 AWGDimension: 12*7.8*3.2（in）Weight : 9.5(ib)Protection function: PV Over Current/powerPV Short CircuitPV Reverse PolarityNight Reverse ChargingBattery Reverse PolarityBattery Over VoltageBattery Over DischargeBattery Overheating,Controller Overheating Lithium Battery Low TemperatureLoad Short CircuitLoad OverloadTVS High Voltage TransientsPackage List: 1 x 100A MPPT Solar Charge Controller1 x Temperature sensor1 x User Manual (English)

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

100A 48V Fit for solar Panel 1300W(12V);2600W(24V);3800W(36V);5000W(48V);Max input Voltage150V PV;MPPT best working voltage rangeDC18V-DC96V(12V);DC36V-DC112V(24V);DC72V-DC150V(48V)

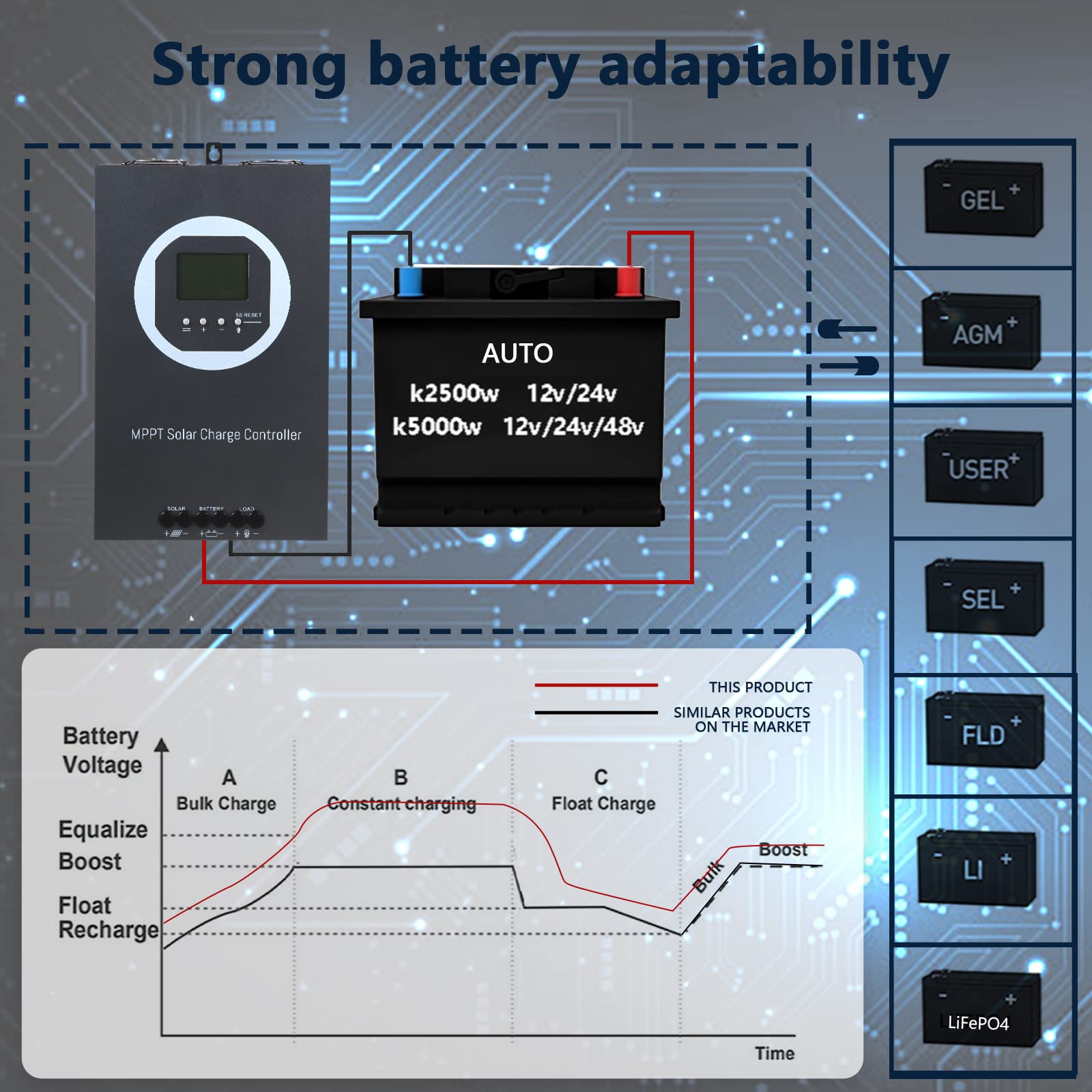

Fit for 12V/24V/36V/48V battery, USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Flooded/Sealed/Gel battery, User programmable for absorption voltage/Floating voltage/Low voltage disconnect.Load Timer.

Multiple protection against overcharge, over discharge, over load, short circuit, reverse polarity, over heat and battery under voltage

Built-in cooling fan, Fan will ON when temperature >45℃ and off < 40℃,Porous heat dissipation and fan use BEARING technologies increase life UP TO 5000hrs in normal use.

The tracking rate of maximum power is ≥99% and the maximum conversion rate is >98%,can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring, etc.

Reviews

*****

Verified Buyer

The P60 controller works great. Customer support is outstanding, they answer questions right away, no long wait times.I am dry camping for the summer, I have 500 watts of solar panels charging six 6 volt batteries, this controller only gets warm when the current is flowing to charge the batteries, the old controller would get so hot I could feel the heat coming off it and it was hot to the touch. I am very satisfied with the P60, all the readings are on one screen. I wish the numbers were bigger and there was a back light. Installation was easy and the owners manual was easy to read compared to other manufactures. I would highly recommend the P60 controller.

-45% Off
