HangTon LP20 2 Pin Power Connector - Industrial Bulkhead Male Female Cable Plug for RV Solar Port - Compatible with Furrion Solar Charge - Perfect for RV, Camper, and Marine Solar Power Systems

$7.48

$13.6

Safe 45%

HangTon LP20 2 Pin Power Connector - Industrial Bulkhead Male Female Cable Plug for RV Solar Port - Compatible with Furrion Solar Charge - Perfect for RV, Camper, and Marine Solar Power Systems

HangTon LP20 2 Pin Power Connector - Industrial Bulkhead Male Female Cable Plug for RV Solar Port - Compatible with Furrion Solar Charge - Perfect for RV, Camper, and Marine Solar Power Systems

$7.48

$13.6

45% Off

Size:

2-pin

6-pin

5-pin

8-pin

3-pin

12-pin

4-pin

7-pin

9-pin

10-pin

Color:

Cable mount

Quantity:

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

19 people viewing this product right now!

SKU: 60323458

Guranteed safe checkout

Description

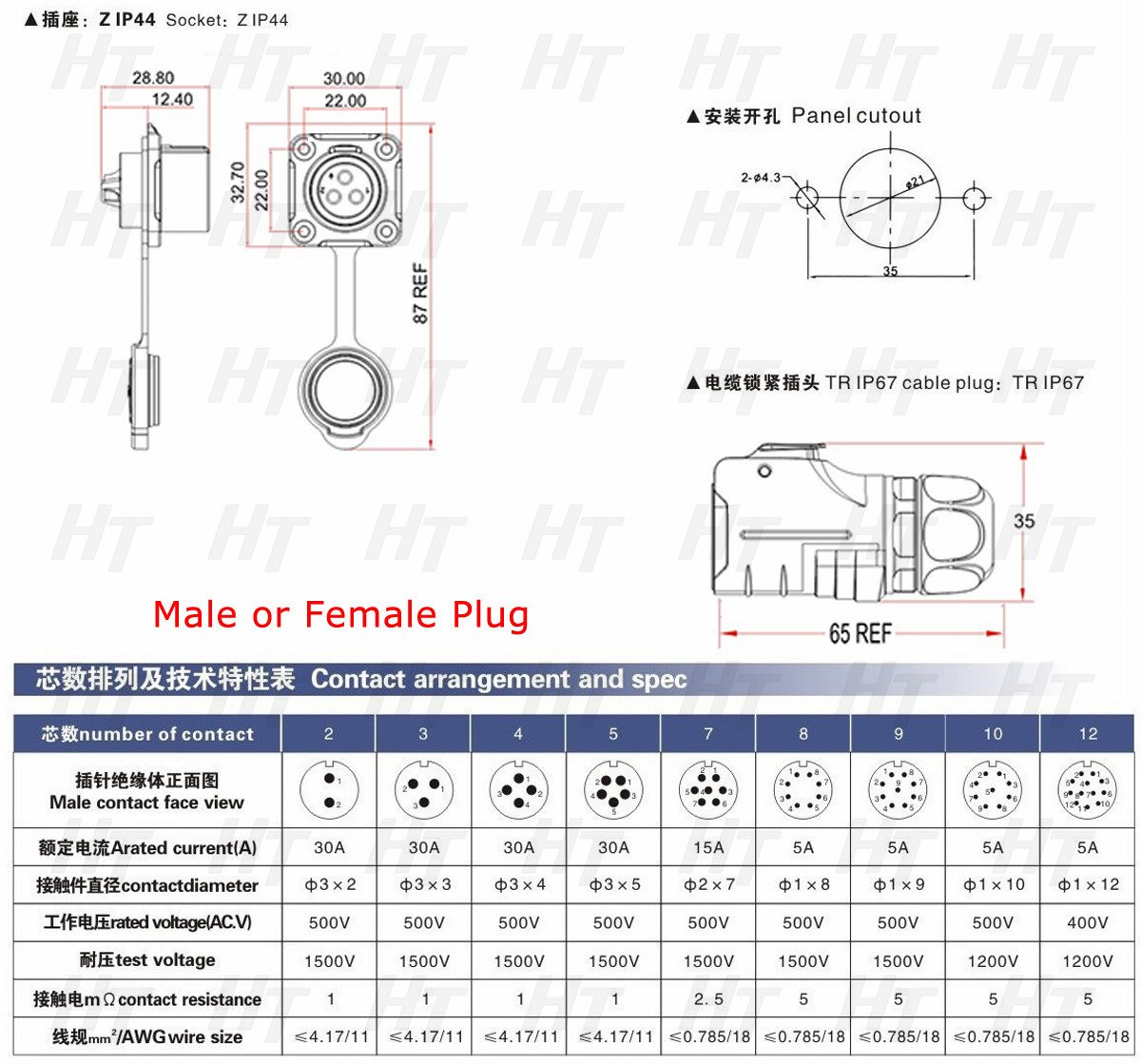

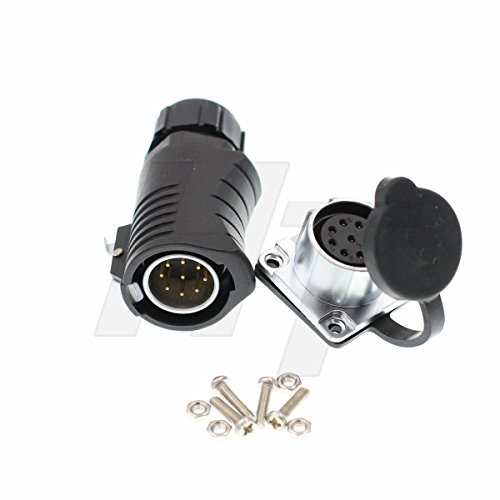

Features: In the harsh environment can provide a safe and reliable connection. LP20(Bayonet) connector is ideal for any equipment for indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution. Specifications: LP20: Model: 2 Pin Material: Plastic IP Rating: IP67 Panel Cutout Diameter: 20mm Cable Outer Diameter Range: 8pin ~ 12pin: 4-6mm, 2pin ~ 7pin: 6-12mm Coupling Type: Bayonet Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Cable Plug with Male Pins 1 x Chassis Socket with Female Pins 1 x Waterproof / Dustproof Cap

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Cable Range 6-12mm, Wire Size ≤4.17mm² or 11AWG, Contact Diameter Φ3. Rated Voltage/Current AC 500V/30A, Resistance 1mΩ

Bayonet coupling, quick disconnect, solder cable plug & socket. Reliable, dust-proof, explosion-proof, deformation-proof.

For machines & automotive & LED & marine equipment, lighting system, indoor & outdoor electrical equipment

Fits for RV solar port, RV Furrion Solar Panel Battery Charger, RV battery and more. Pin 1 as the Positive connection and pin 2 as the Negative connection

You should have a charge controllers wired between the solar panel(s) and battery, to limit the current and voltage to the battery to prevent an unsafe charge condition.
