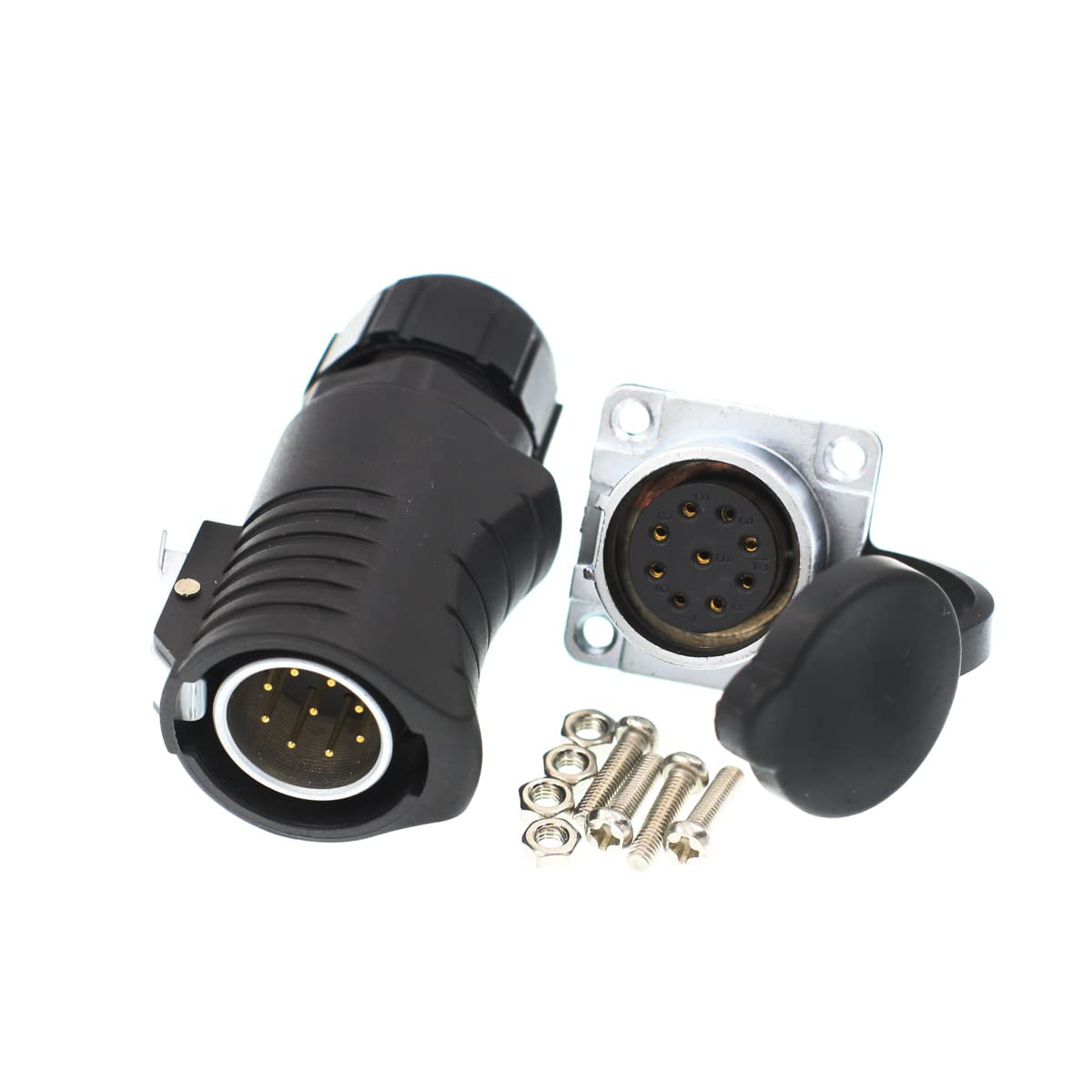

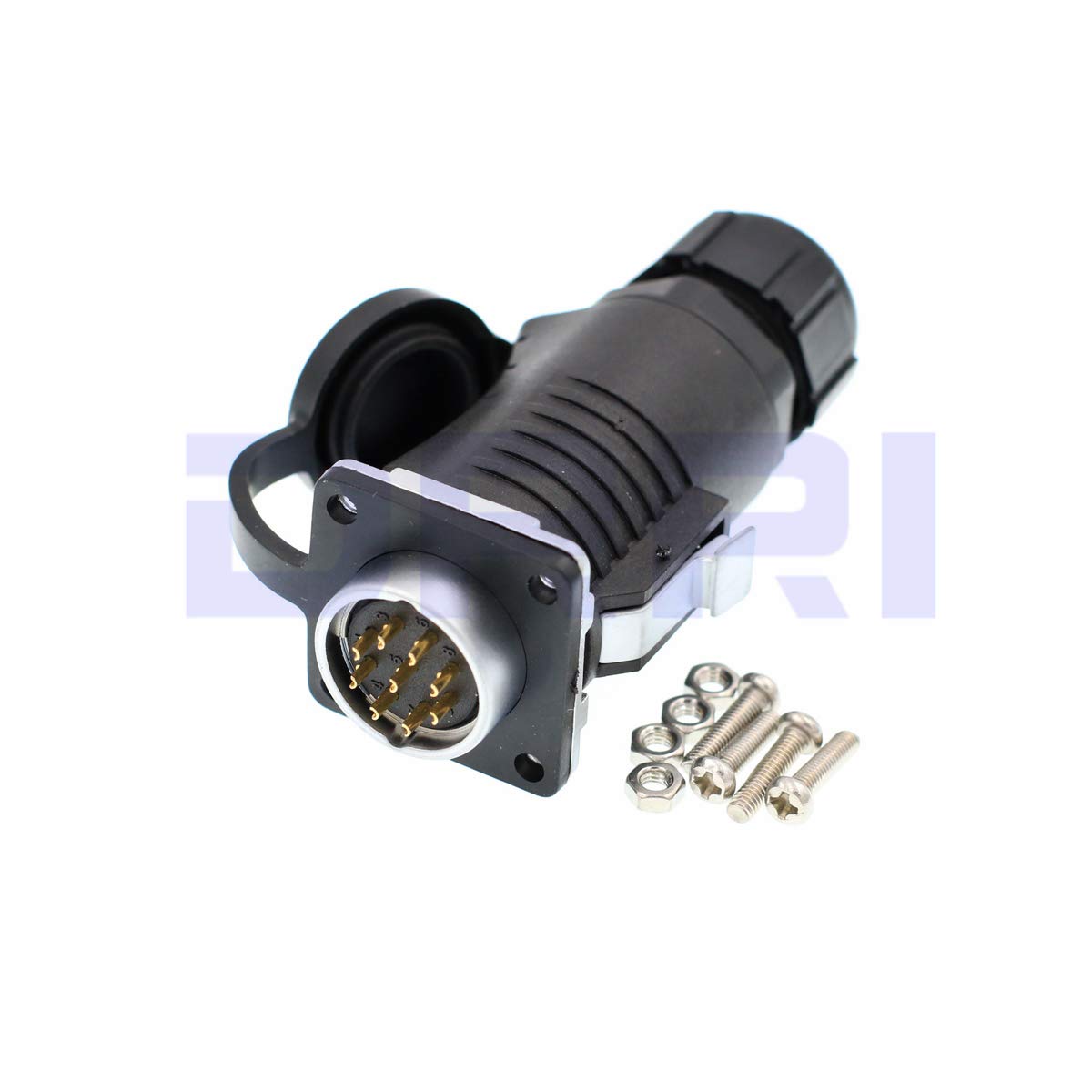

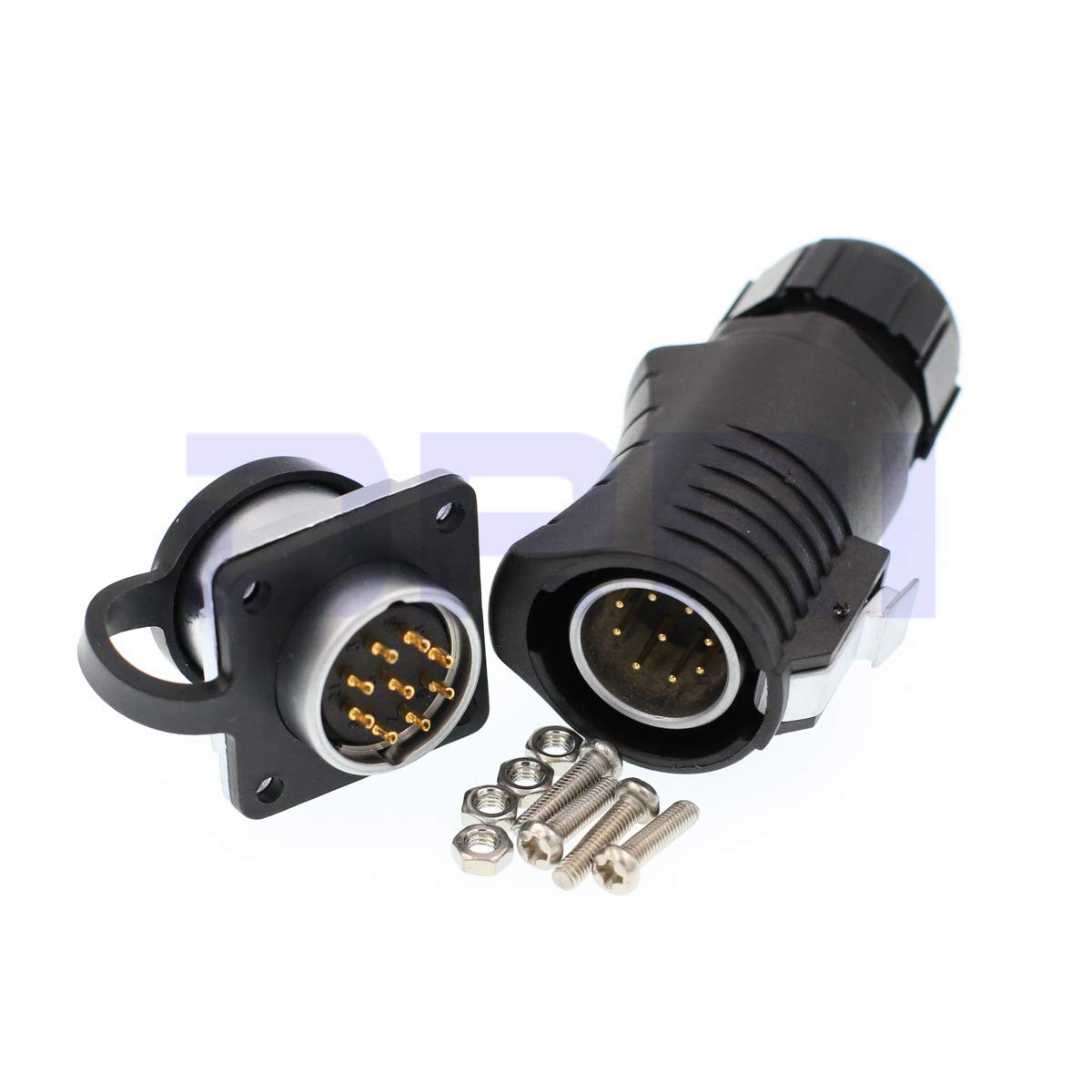

LP20 9 Pin Outdoor Waterproof Bulkhead Quick-Disconnect Power Industrial Circular Connector for Solar Generators, RV Solar Panels - Weatherproof Electrical Connection for Harsh Environments & Off-Grid Power Systems

$7.52

$13.69

Safe 45%

LP20 9 Pin Outdoor Waterproof Bulkhead Quick-Disconnect Power Industrial Circular Connector for Solar Generators, RV Solar Panels - Weatherproof Electrical Connection for Harsh Environments & Off-Grid Power Systems

$7.52

$13.69

45% Off

Color:

Feamle plug & male socket

Male plug & female socket

Quantity:

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

9 people viewing this product right now!

SKU: 75024984

Guranteed safe checkout

Description

Model Number：9pin> Shell material: nylon PA66 Insulation :Flame Retardant Nylon PPS High Temperature 260°C Contact :copper (electroplated gold) Screw attachment : stainless steel Connection method :Quick snap connection Protection level IP65 Temperature range :-25°C~ +85°C Rated current :5A Operating voltage :500V (AC.V) Mechanical life: more than 500 times Impact: -25°C 16h >0.5Kg 25°C (GB/T 11918 standard) Withstand voltage: 1500V Contact resistance: 5MΩ Insulation resistance: 2000MΩ

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

LP20 20mm Panel Mount Waterproof 9pin Connector

Material shell with stability, compression, anti-explosion, and anti-deformation. Gold-plated contacts，hight corrosion resistance and strong electrical conductivity

Wire 0.15-0.2mm² /26-24AWG, Cable φ5.5-7mm;Rated Current / Voltage 5A / AC 500V;Contact Diameter Φ1，Resistance 5mΩ

Fit for the furrion plug fix on rv trailers with solar plug,for trolling motor and battery charging,for Fit Furrion and solar generator

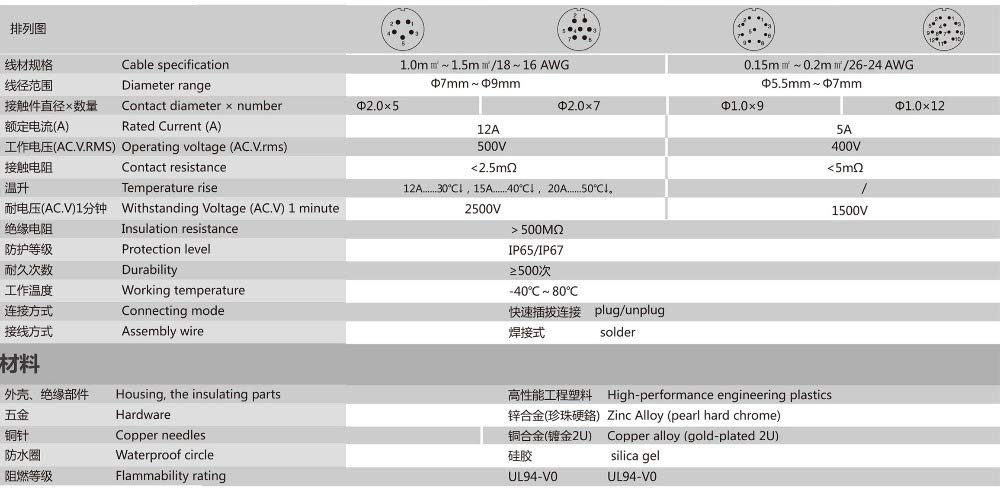

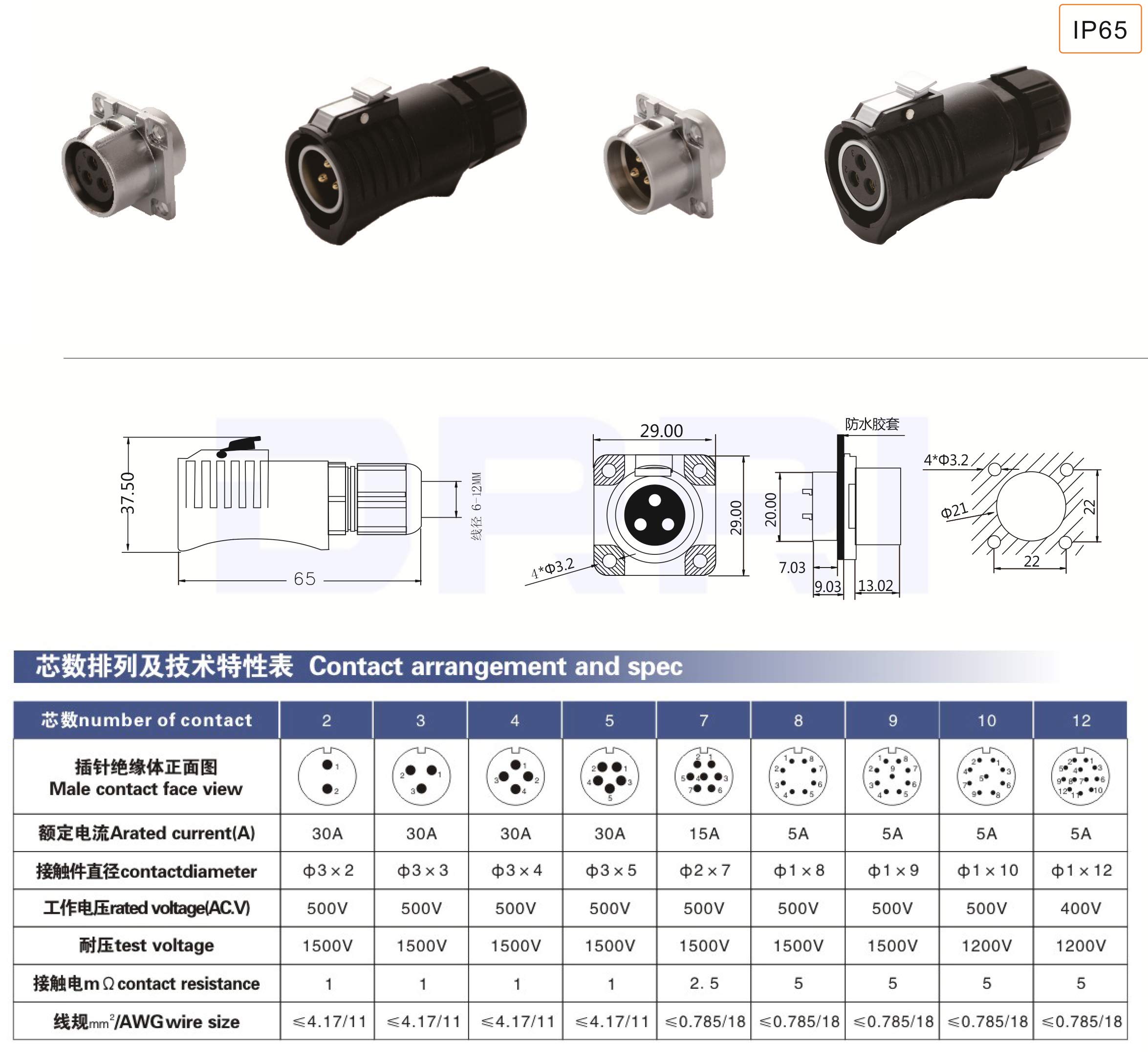

Different pins please refer to the left attached Parameters drawings.
